  • Samarium Doped Glass Plates Used as UV Filter

Samarium Doped Glass Plates Used as UV Filter

  • Material: 10% Samarium doped glass
  • Dimension: According to customer’s requirement
  • Application: used as a filter between a flash lamp and Nd:YAG active element in a laser's pump chambers.
  • Origin: China
  • Samarium doped glass platesdiscswindowsSubstrates
    Inquiry Send Email

    Description

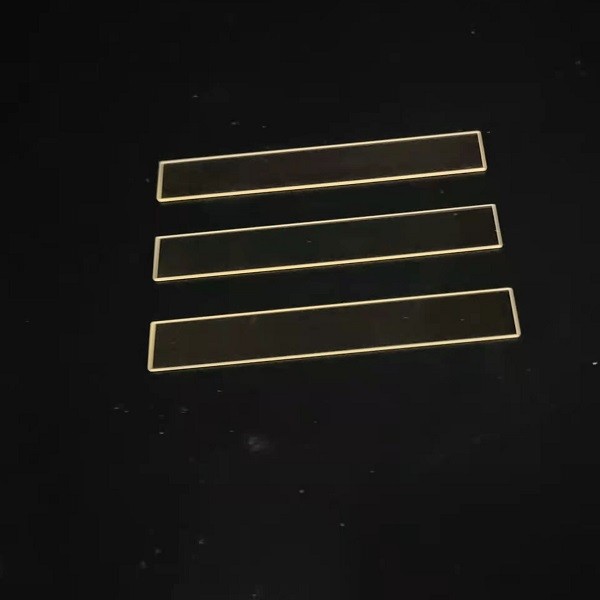

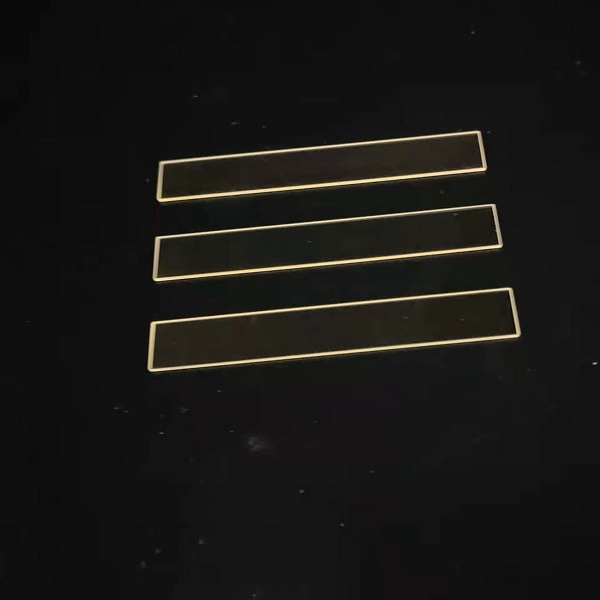

    Samarium Doped Glass Plates
    Samarium Doped Glass can block all UV light below 400nm, it also fluoresces in the visible range, causing a slight increase in pumping efficiency with some lasing mediums. And it blocks the 1064nm wavelength as well. The samarium doped glass plate is used as a filter between a flash lamp and Nd:YAG active element in a laser's pump chambers.
    After all process is finished, the Sm doped glass plate can be hardened according to customer requirement.

    Production Specification:
    Description: Samarium doped glass plates/discs/windows/Substrates
    Material: 10% Samarium doped glass
    Dimension: As per requirement
    Tolerance: As per requirement
    Surface Quality: SD 80/50 or 60/40



    We can produce glass discs, glass flow tubes, glass triple bore, laser cavity filter in Samarium Doped Glass. Welcome to contact us for more details!
