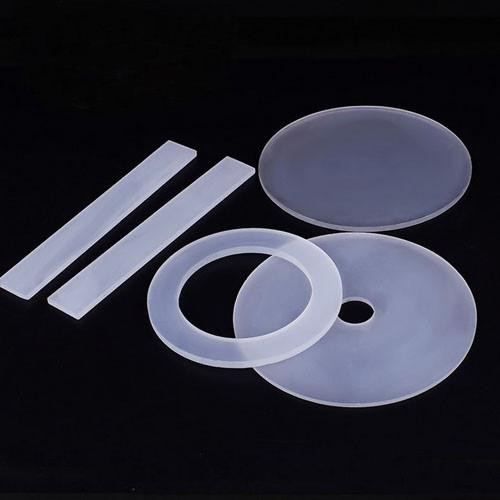

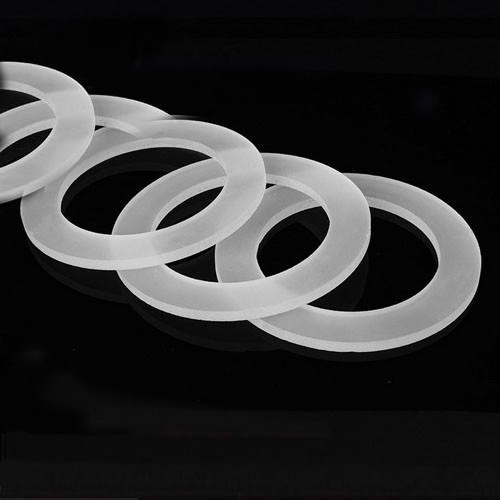

Frosted Quartz Ring
Product description:
Frosted Quartz Ring is widely used in high temperature resistant machine or other field. With the help of CNC machine tools and according to customer drawings, Laseri factory can produce customized high temperature resistant quartz glass parts of various sizes and shapes to meet the requirements of different customers. Because depending on the use, the machining accuracy can be achieved from ±0.5mm to ±0.02mm. By changing different CNC tools, different shapes can be processed. For more questions, please send email to me.
Applications :
Etch tanks,
Temperature resistance support parts
Pedestals for reaction chambers
Temperature resistant accessories on semiconductor equipment
Vacuum coating equipment accessories
vacuum equipment
Advantage of Quartz Glass Plate/Sheet/disc:
1) High purity :SiO2> 99.99%.
2) Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3) Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4) Health care and environmental protection.
5) No air bubble and no air line.
6) Excellent electrical insulator.
China Optical Quartz Glass Grade
Name |
Corresponding grade |
Feature |
Far Ultraviolet Optical Quartz Glass |
JGS1 |
Transparent in the ultraviolet and visible spectrum; no absorption band in the 185-250nm band; strong absorption band in the 2600-2800nm band; non-luminous, stable light radiation. |
UV optical quartz glass |
JGS2 |
Transparent in the ultraviolet and visible spectrum; no absorption band in the 200-250nm band; strong absorption band in the 2600-2800nm band; non-luminous, stable light radiation |
Infrared optical quartz glass |
JGS3 |
Transparent in the visible and infrared spectrum; no obvious absorption band in the 2600-2800nm band; |
Specification:
Shape |
Length/OD |
width |
thickness |
Surface quality |
Round |
0.5mm to 1200mm |
|
0.05mm to 500mm |
polished |
square |
0.5mm to 1200mm |
0.5mm to 1200mm |
0.05mm to 500mm |
unpolished |
Tolerance:±0.02mm to 2mm |
customer | |||
Other sizes can be customized according to customer requirements |
|
Quartz Characteristic
SIO2 |
99.99% |
Density |
2.2(g/cm3) |
Degree of the hardness moh’ scale |
6.6 |
Melting point |
1732℃ |
Working temperature |
1100℃ |
Max temperature can reach in a short time |
1450℃ |
Acid tolerance |
30 times than ceramic,150 times than stainless |
Visible light transmittance |
Above 93% |
UV spectral region transmittance |
80% |
Resistance value |
10000 times than ordinary glass |
Annealing point |
1180℃ |
Softening point |
1630℃ |
Strain point |
1100℃ |
Optical properties of quartz glass
Wavelength |
Transmittance% |
||
nm |
Synthetic quartz glass |
Fused Quartz glass |
Infrared quartz glass |
170 |
50 |
10 |
0 |
180 |
80 |
50 |
3 |
190 |
84 |
65 |
8 |
200 |
87 |
70 |
20 |
220 |
90 |
80 |
60 |
240 |
91 |
82 |
65 |
260 |
92 |
86 |
80 |
280 |
92 |
90 |
90 |
300 |
92 |
91 |
91 |
320 |
92 |
92 |
92 |
340 |
92 |
92 |
92 |
360 |
92 |
92 |
92 |
380 |
92 |
92 |
92 |
400-2000 |
92 |
92 |
92 |
2500 |
85 |
87 |
92 |
2730 |
10 |
30 |
90 |
3000 |
80 |
80 |
90 |
3500 |
75 |
75 |
88 |
4000 |
55 |
55 |
73 |
4500 |
15 |
25 |
35 |
5000 |
7 |
15 |
30 |
