Description:

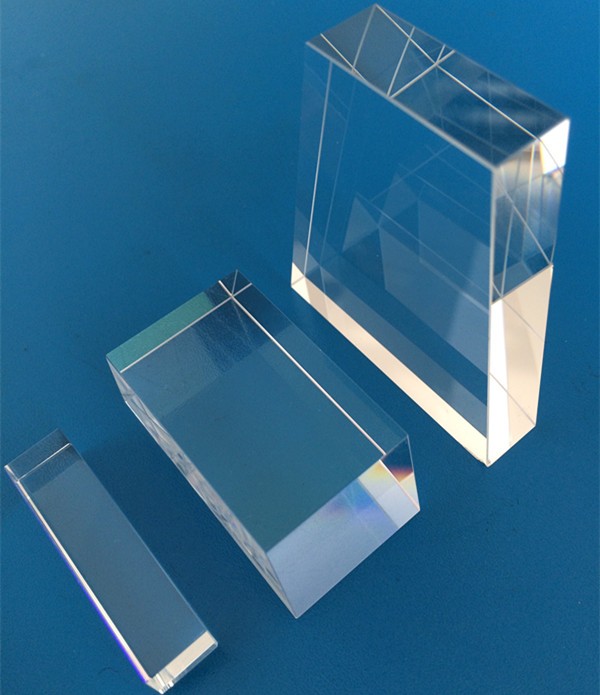

The sapphire IPL light guide plate is a light guide block used for laser beauty instruments. It is a rectangular parallelepiped optical glass, all six sides are optically polished, and one end surface is coated with a cut-off filter film, which generally cuts off light below 575nm, 600nm~ 1200nm is transmitted, and the transmitted light is totally reflected around the light guide block and finally emitted from the other end surface, and then irradiated to the skin surface for laser beauty. It is a good laser light window used for IPL laser beauty and skin beautification equipment.
Technical parameter :
according to customers' requirement
Material
Sapphire, fused silica, BK7
Dimension specification
8x40x30, 8x40x34, such rectangle
50x15-65x57, 35x15-65x57 such trapezoidal
and can be customized according to customers' needs
Dimension tolerance
+-0.05-1mm
Surface quality
60/40 or better
Clear aperture
>90%
Coating
Surface accuracy
Lambda/2
Center thickness tolerance
+-0.1mm
Shape
according to customers' requirement
Applications
• Laser and IPL Machine
• Laser hair removal
Lead Time
For stock parts, we will ship out within one week. For customized parts, please contact us for more information. If you are in urgent need, we will arrange in priority.
