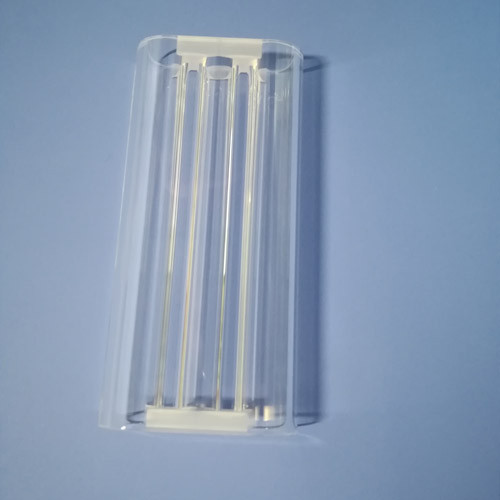

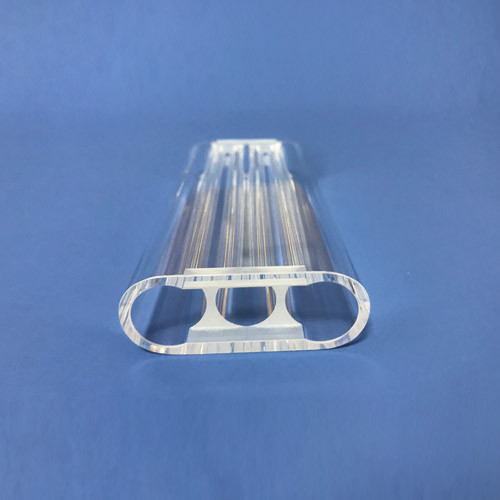

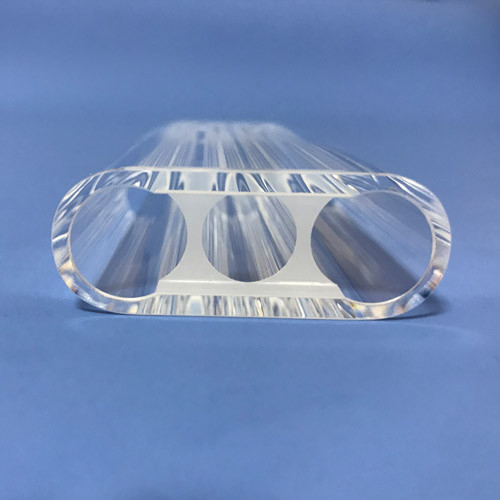

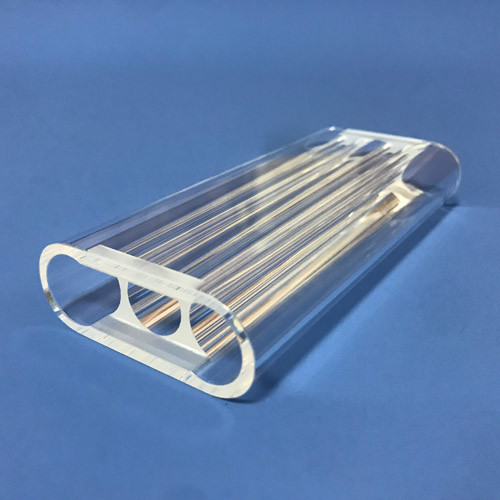

Transparent Laser Flow Tube

  • Material: Fused Silica
  • Application: Medical Beauty Equipment
  • Surface: All Transparent
  • High precision  , good working performance
    Inquiry Send Email

    Description

    The glass laser flow tube is assemblied in the laser head of medical beauty equipment.
    When using quartz glass for flow tube, it can transmit deep into the UV range down to 200nm.


    The Main Properties of Quartz Glass:

    Mechanical properties
    Quartz glass is a brittle material with low tensile strength and high compressive strength. The latter is 20 times that of the former.
    Thermal performance
    Quartz glass has a very low coefficient of linear expansion, very good resistance to thermal vibration, and is a poor conductor of heat.
    Optical performance
    An important difference between quartz glass and ordinary glass is its good transmittance in the entire spectrum, especially in the ultraviolet and deep ultraviolet spectrum, which is not available in ordinary optical glass.
    Electrical performance
    The main electrical properties of quartz glass are high dielectric electric field strength, low dielectric loss and low conductivity.
    Chemical properties
    Quartz glass is a material with very good chemical stability and does not react with water, salt solutions and most acids.
    Radiation resistance
    Compared with ordinary glass, quartz glass has excellent radiation resistance. Among them, synthetic quartz glass has the best radiation resistance and hardly produces color centers.


    We accept custom production according to drawings, available quartz materials are Corning 7980, Fused Silica, Fused Quartz and other designated quartz material. The quartz triple bore is manufactured by CNC machine, dimension is well controlled. Well choosed material make the product performance good and long serive time.

    Welcome to contact us for more information.
