  4. YAG Ceramic Laser Cavity for Nd YAG Lase
  • YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm
  • YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm
  • YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm
YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm

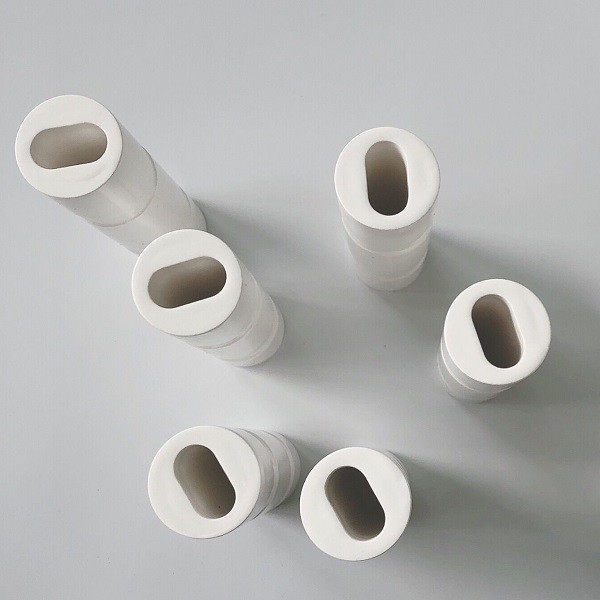

YAG Ceramic Laser Cavity for Nd YAG Lase With 97mm 117mm 130mm

  • Material:Al2o3 Ceramic
  • Color: White
  • Density: 3.1Mg/m^3
  • Flexural strength: 170Mpa
  • Ceramic Laser Cavity  , Alumina Ceramic Laser Reflector  , Alumina Laser Cavity  , Ceramic Diffuser Reflector  , High Reflectance Cavities  , Alumina-Based Ceramic Cavities  , Ceramic Laser Reflectors  , Laser Reflectors  , Alumina Ceramic Cavity
    Inquiry Send Email

    Description

    Ceramic Reflector features:

    Compared to metal reflectors, ceramic units offer higher reflectivity and therefore enhanced laser power. Surfaces can be sealed and coated with a

    solarization-resistant glaze to give high bulk reflectivity

    Main Features
    1. Resists chemical attack
    2. Controlled porosity
    3. Has high strength
    4. Good thermal conductivity
    5. High electrical resistivity
    6. the surface of the glaze to obtain the maximum reflectivity and easy to clean
    7. the wavelength of 600-1000nm at the reflectivity of 98%
    8. in the 400-1200nm spectral range of reflectivity of more than 96%
    9. the body has the appropriate porous and high strength characteristics

    Inquiry Us





    Related Products

    H-ZLAF50 Precision Glass Ball Lens

    H-ZLAF50 Precision Glass Ball Lens

    Frosted Quartz Ring

    Frosted Quartz Ring

    Quartz Disc

    Quartz Disc

    Ceramic Laser Reflectors Diameter 58mmx95mm

    Ceramic Laser Reflectors Diameter 58mmx95mm

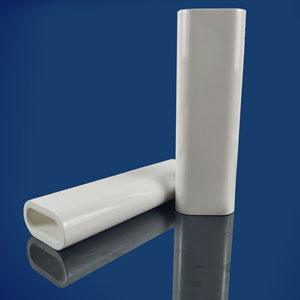

    Alumina Ceramic Reflector
