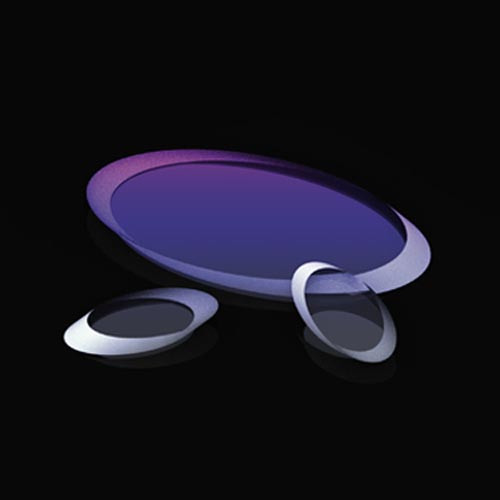

Brewster Windows

  • Material: JGS1
  • Brewster Angle @633nm: 55.32°
  • Dimension Tolerance: 0.0/-0.1mm
  • Thickness Tolerance: ±0.1mm
  • Brewster Windows
    Inquiry Send Email

    Description

    Brewster Windows

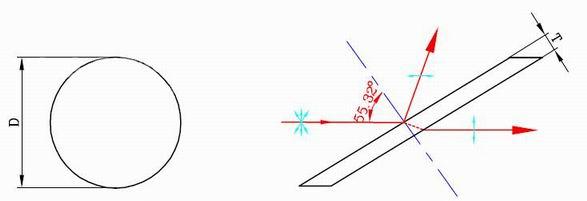

    The base of Brewster windows is not coated, it is usually used as a polarizer. When window is placed at the Brewster angle, the P polarization component of the beam will pass through the window without loss, and most of the S polarization component will be reflected by the Brewster window, which is very suitable for use in the laser cavity.


    Material: JGS1
    Brewster Angle @633nm: 55.32°
    Dimension Tolerance:  0.0/-0.1mm
    Thickness Tolerance:  ±0.1mm
    Clear Aperture: ≥90%
    Surface Quality: 20/10
    Flatness: λ/4@633nm
    Parallelism: ≤3’
