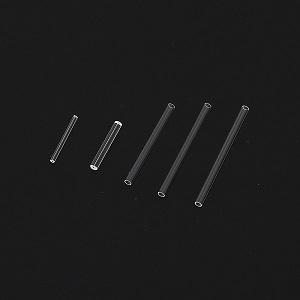

  • Quartz Fiber Optic Sleeve
  • Quartz Fiber Optic Sleeve
Quartz Fiber Optic Sleeve Quartz Fiber Optic Sleeve

Quartz Fiber Optic Sleeve

  • Product Item:LO-A0005
  • Material: Fused Silica
  • Dimension: Customized
  • Shape: Round
  • Tube ends: Cone is available
  • Inquiry Send Email

    Description

    Quartz Fiber Optic Sleeve

    Micro quartz glass capillary tubes and rods are made of high purity silicon dioxide in thermal processing method. The tubes and rods are drawn at one time, dimension and tolerance are uniform which in high precision, good tolerance control.

    Material: Fused Quartz Glass
    Purity: SiO2 99.99%
    Density: 2.2g/cm3
    Light Transmittance: over 92%
    Moh's Hardness: 5.5~6.5
    Short-Term Use Temperature: 1300℃
    Long-Term Use Temperature: 1100℃
    Softening Point: 1680℃
    Thermal Expansion Coefficient: 5.5×10-7cm/cm.℃
    Certification: ISO9001
    Brand Name: Laseri
    Place of Origin: China
    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Payment: T/T
    Supply Ability: 100000 pieces/month


    The Main Properties of Quartz Glass:
    * Mechanical properties
    Quartz glass is a brittle material with low tensile strength and high compressive strength. The latter is 20 times that of the former.
    * Thermal performance
    Quartz glass has a very low coefficient of linear expansion, very good resistance to thermal vibration, and is a poor conductor of heat.
    * Optical performance
    An important difference between quartz glass and ordinary glass is its good transmittance in the entire spectrum, especially in the ultraviolet and deep ultraviolet spectrum, which is not available in ordinary optical glass.
    * Electrical performance
    The main electrical properties of quartz glass are high dielectric electric field strength, low dielectric loss and low conductivity.
    * Chemical properties
    Quartz glass is a material with very good chemical stability and does not react with water, salt solutions and most acids.
    * Radiation resistance
    Compared with ordinary glass, quartz glass has excellent radiation resistance. Among them, synthetic quartz glass has the best radiation resistance and hardly produces color centers.

    The unique characteristics of quartz capillary tubes and rods make it the material of choice for many analytical techniques, including gas and liquid chromatography, capillary electrophoresis, DNA sequencing and fragment analysis genomics, proteomics, microfluidics, controlled supply of gases and fluids, andhigh-precision flow cell for blood cell counting.In the optical communication industry, quartz capillary tubes can also be used as key components of optical fiber pigtails, optical fiber sleeves, etc.

    The hydroxyl groupfor water (OH content) in the quartz glass is a harmful impurity in the quartz glass. It can reduce the high-temperature viscosity of the quartz glass, thereby reducing the temperature resistance. When the quartz glass is used as an optical element, the hydroxyl group will change a series of physical parameters such as the refractive index, light transmittance, and thermal expansion coefficient, hence affecting the crystallization performance of quartz glass. We can produce low OH content capillary tubes and rods, which is used in many applications.

    We can manufacture quartz glass capillary tubes according to customers’ design.
    Available material: Corning brand quartz, fused quartz, synthetic fused silica, borosilicate glass etc.
    Available dimension: Any dimension required.
    Available bores: One bore, two bores, three bores, four bores… etc.
    Available shapes: Round, rectangular, square, D-shape, flower shape, triangle shape …etc.
    Available processing: Cutting, bending, sealing, tapering, drilling holes etc.

    We have stock for various dimensions micro quartz glass tubes, shipping within one week. It will absolutely save your time and cost. Please contact us for more information.

    Safe Packaging method suitable for quartz glass capillary tubes in export standard:
    Self-sealing plastic bag contained
    Bottle or plastic box wrapped
    Pearl cotton protected
    Multi-layer carton or export standard wooden box packed

    International shipping considering of time, cost and service:
    By express, like DHL, TNT, UPS, FEDEX and EMS (no import tax),
    By train, sea or air.

    FAQ
    Q1: What is the minimum order quantity?
    The minimum order quantity is 1 pc. We have stock for many of the products, which can save customer cost if they only require few pieces.
    Q2: What is the lead time?
    For stock parts, we will ship out within one week. For customized parts, please contact us for more information. If you are in urgent need, we will arrange in priority.
    Q3: Can I customize my product?
    Yes, sure. We can produce according to customer’s requirement. Please let us know your detail specification, we will achieve it accordingly.
    Q4: I am not sure what kind of material I shall use in my application. What shall I do?
    Our experienced engineer will give you suggestion and help you determine which material is the best option for you. Just let us know your needs, we will propose for you.
    Q5: Is the quality guaranteed?
    Yes, we can guarantee the quality. Our workers are experienced; all dimension is well controlled. Before shipment, every product will be inspected strictly. We value our reputation in the field, and hope to establish long term cooperation.

    Welcome to contact us from below for more information!

    Inquiry Us





    Related Products

    Factory customized U shape Quartz glass substrate for WDM

    Factory customized U shape Quartz glass substrate for WDM

    Quartz Glass Rods

    Quartz Glass Rods

    Borosilicate Glass Laser Flow Tube

    Borosilicate Glass Laser Flow Tube

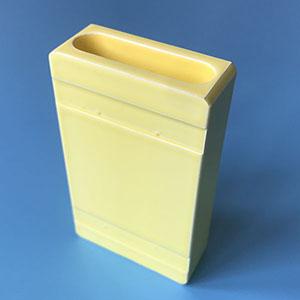

    Ceramic Laser Reflectors
